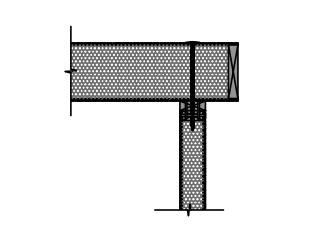

Thermal Bridge Report - Barge Detail with Overhang - 315 Wall Panel and 315mm Roof Panel (SIPs)
This downloadable thermal bridge report provides detailed modeling for the barge detail with overhang using Structural Insulated Panels (SIPs).
Prepared to meet Passive House Certification requirements, this report includes:
- Ψ-value (linear thermal transmittance)
- Internal surface temperature (fRsi)
- Summary of construction assumptions
- Formatted for documentation and energy modeling
This junction is modeled with:
- 315 Wall Panel and 315mm Roof Panel
Delivered as a professional PDF report, this file helps design teams:
- Improve thermal performance
- Reduce modeling lead times
- Support Passive House, Homestar, or SIP-specific detailing
Instant download
For SIP-based construction
Certification-ready performance data
Great for architects, designers, and consultants
